Auger Boring
Jacked steel casing on grade, the standard for rail and highway crossings.
How it works
The short version
A track-mounted machine jacks steel casing forward while an auger removes spoil through it. It is the method most rail carriers and state DOTs name in their own crossing standards, because the casing goes in on a straight line at a controlled grade and the surface above never moves.
Where it fits
- Railroad crossings to carrier specification
- Highway and interstate casings
- Gravity sewer where grade cannot vary
- Casing for later carrier pipe installation
What you get from us
- Pit shoring design sealed by an SC engineer
- Rail flagging and track protection coordinated
- Grade shots recorded through the drive
- Casing spacers and end seals installed
| Casing diameter | 12 – 72 in |
|---|---|
| Maximum single drive | 600 ft |
| Grade tolerance | ±1% on a cased drive |
| Casing material | Steel, 0.375 – 0.750 in wall |
| Pit shoring | Trench box or sheeted, engineered |
On the edge of that range?
Those are the numbers we will put our name to on a bid. If your crossing is longer, deeper or wider than what is listed, say so - sometimes the answer is a different method, and sometimes it is a straight no. Both are more useful than a number we cannot hit.
Ask about your crossingReferences
Auger jobs we have finished
Owner, diameter and length - the detail an engineer actually checks.
US-501 casing for water transmission
Jacked under five lanes and the median without a single lane closure, on an SCDOT encroachment permit, with the carrier pipe installed on spacers the same week.

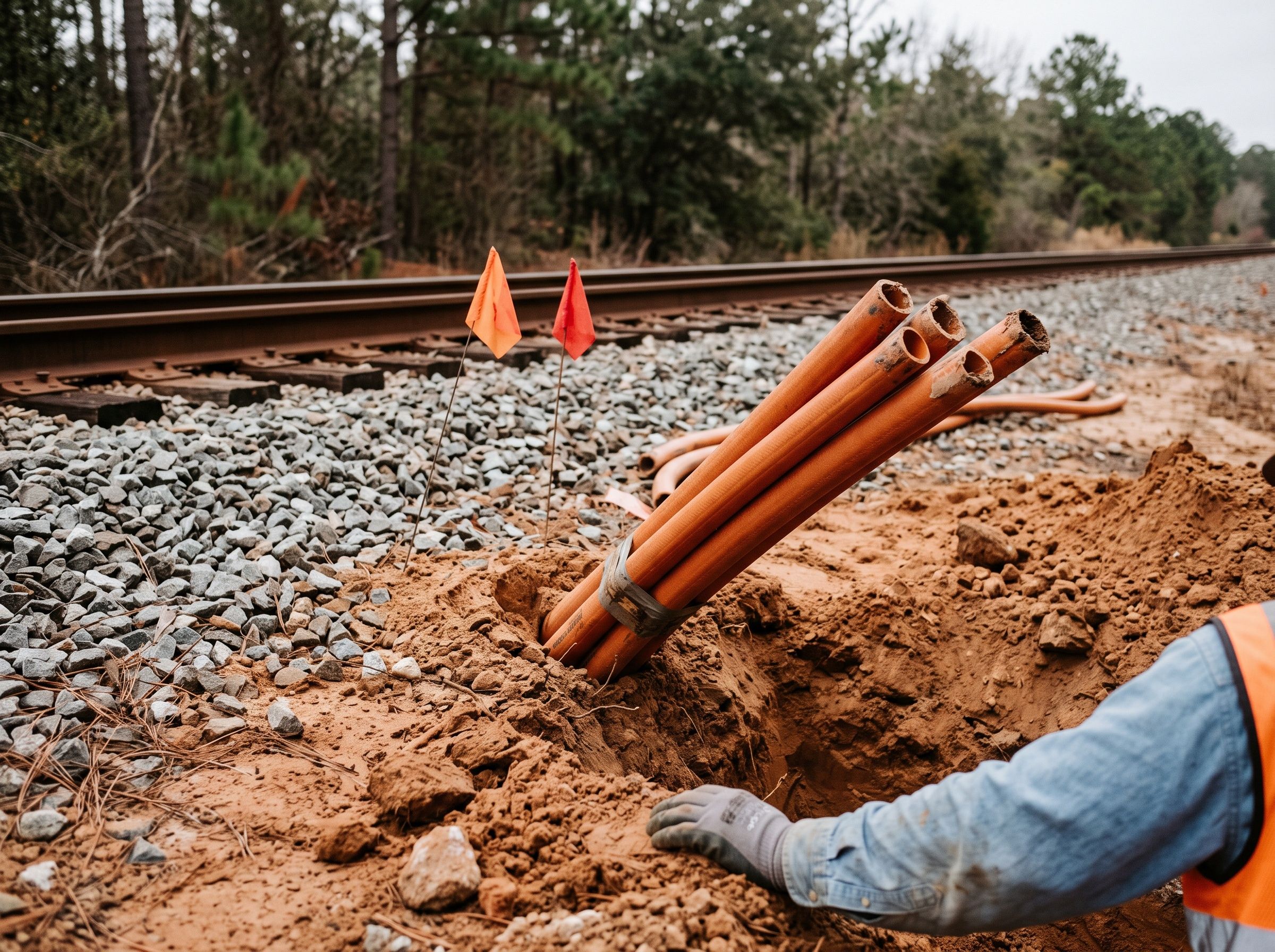

Class I railroad crossing, fiber duct bank
Built to the carrier’s own crossing standard with flagging and track protection, permitted, bored and backfilled inside the eleven-day window we were given.
The other three methods
Horizontal Directional DrillingHDD
Steerable bores that go under the obstacle and come back up on the far side.
- Maximum pipe diameter: 36 in
- Maximum single shot: 2,200 ft
Pilot Tube Guided BorePilot tube
Line-and-grade accuracy for small gravity sewer in tight quarters.
- Product pipe diameter: 8 – 30 in
- Maximum drive length: 400 ft
MicrotunnelingMTBM
Remote-operated tunnelling for deep, wet and unforgiving ground.
- Finished diameter: 30 – 96 in
- Maximum drive length: 1,000 ft between shafts
